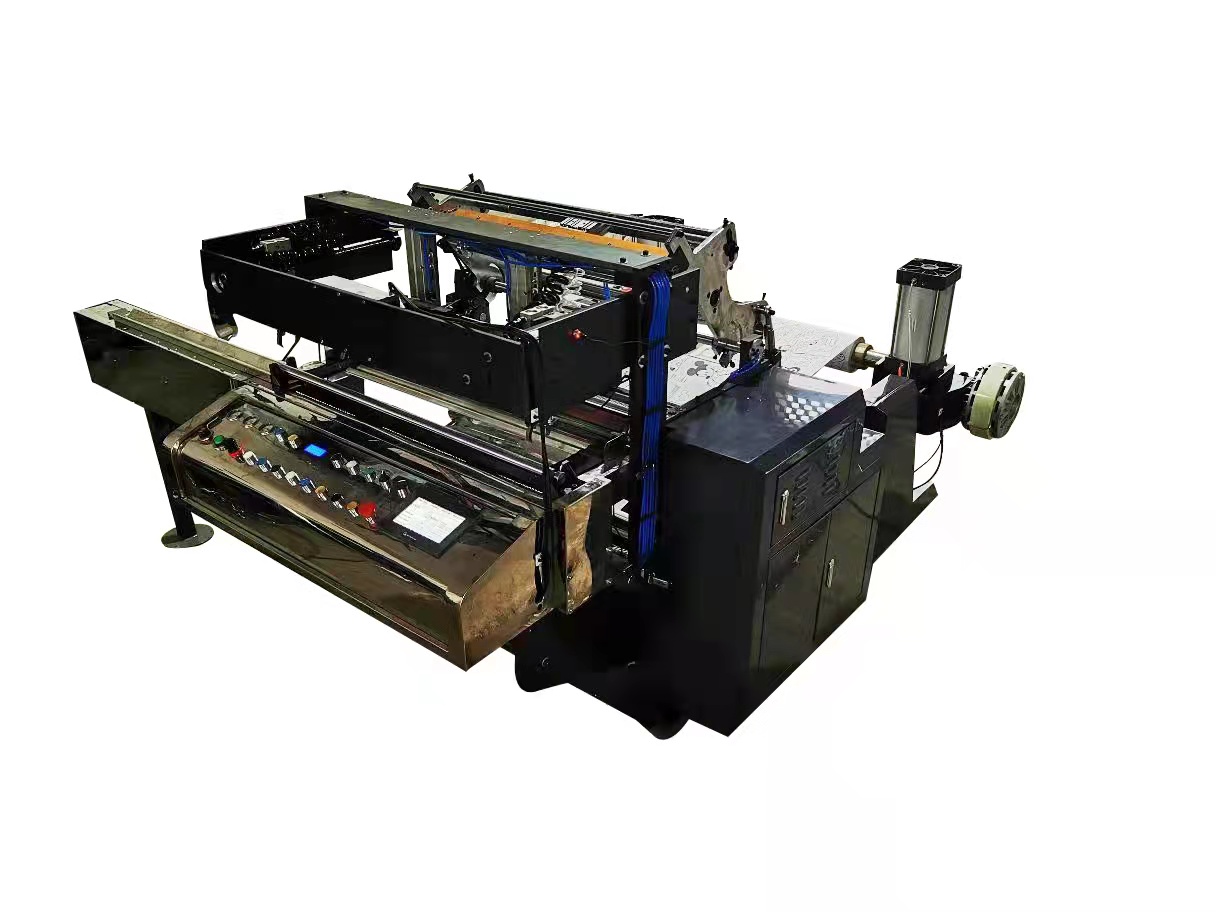

FULLY AUTOMATIC CORELESS TYPE THERMAL PAPER SLITTING REWINDING MACHINE HAN-900

this fully automatic coreless type thermal paper slitting rewinding machine is mainly suitable for slitting all
kinds of THERMAL PAPER,FAX PAPER, CASH REGISTER, COMPUTER BILL, MEDICAL RECORD
PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self adhesive paper etc.

TEL: 0086-577-65123056 MOBILE/WHATAPP: 008613967712353 E-mail: cathylong7755@gmail.com skype: cathylong7755

Details

Description :

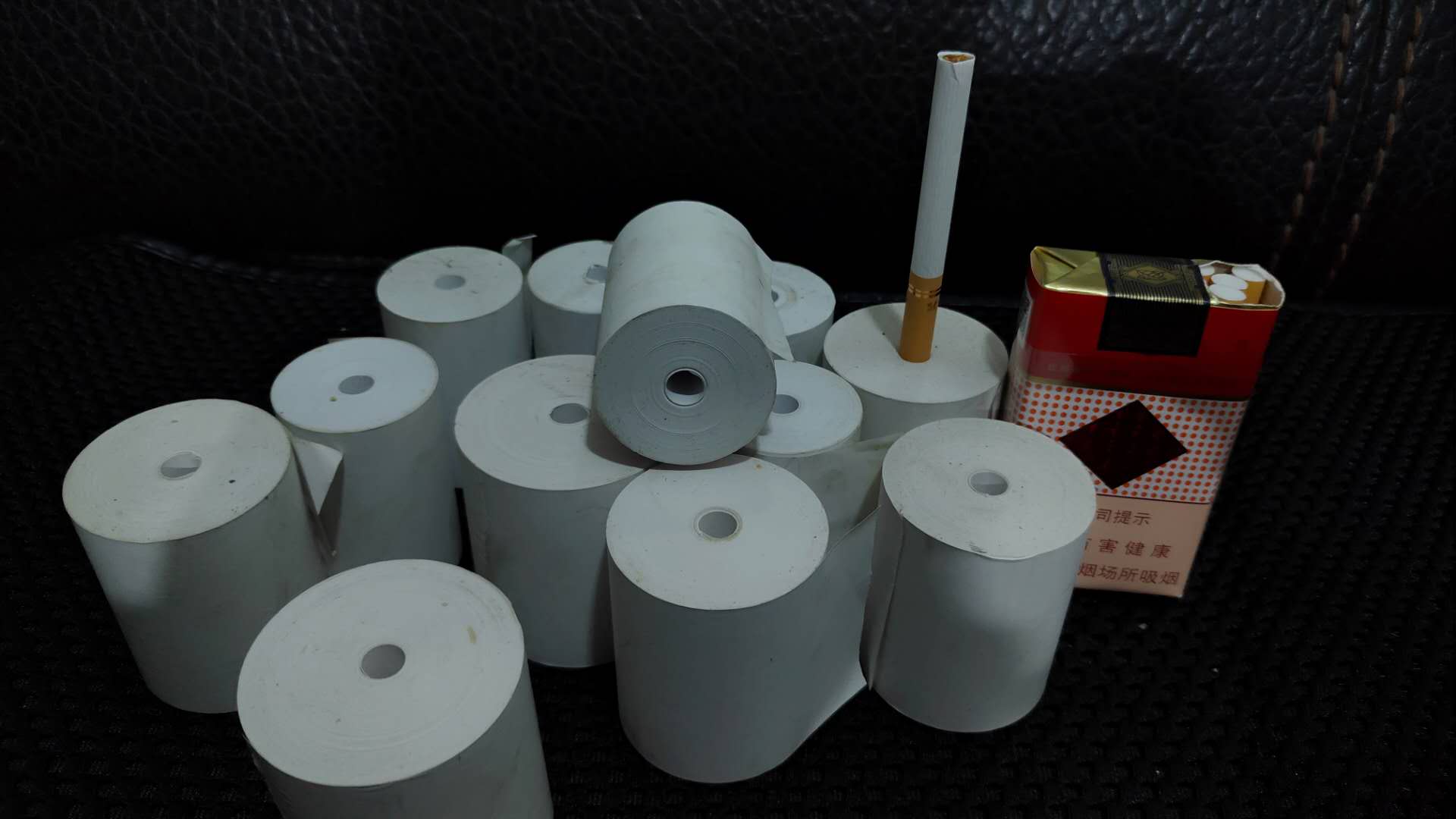

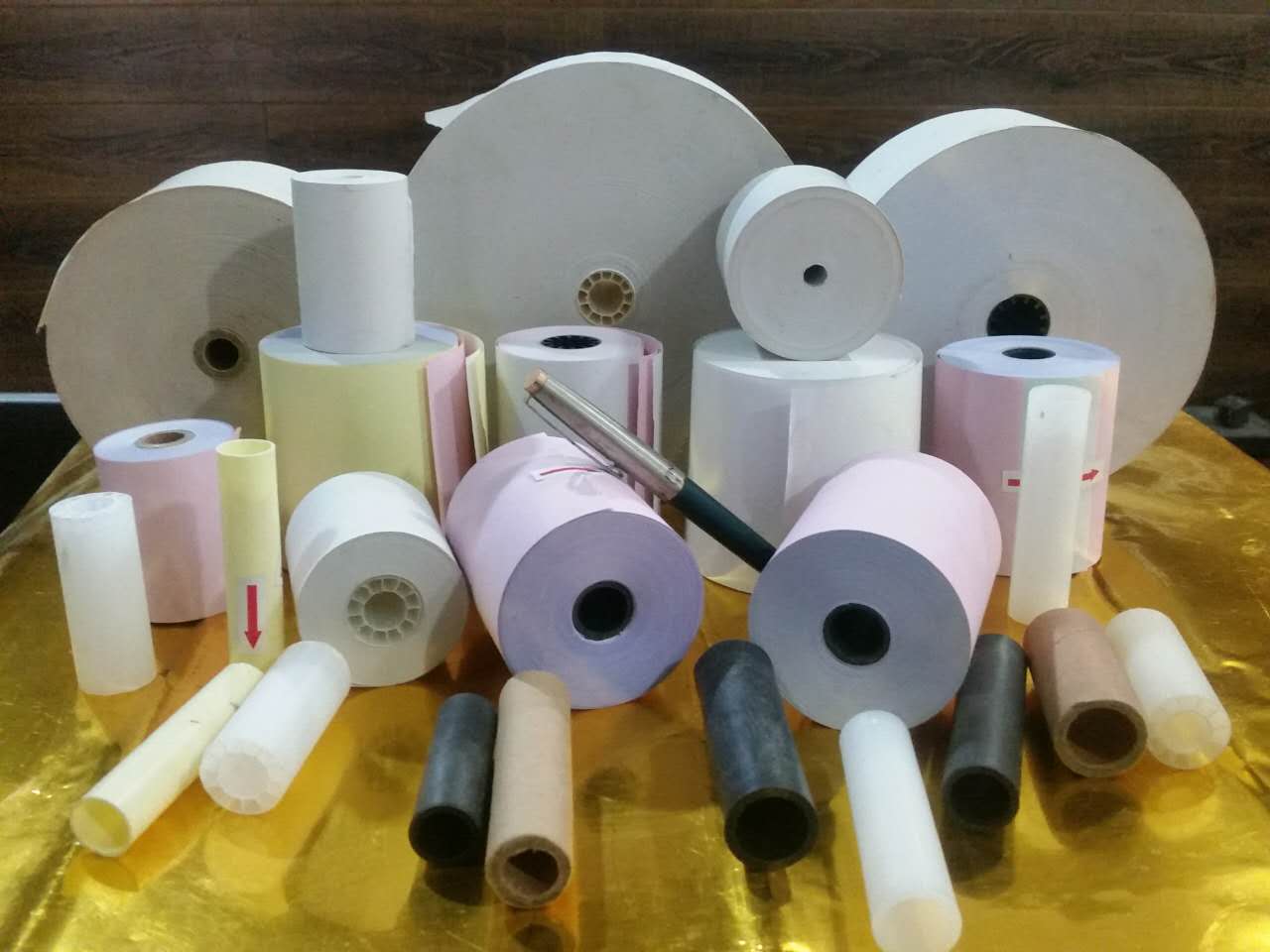

USAGE: it is mainly suitable for slitting all kinds of THERMAL PAPER,FAX PAPER, CASH REGISTER, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self adhesive paper etc.

FUNCTION: it is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller.

Trim extractor

AUTOMATIC CUTTING SYSTEM

AUTOMATIC GLUEING SYSTEM

Robotic movements by means of a manipulator that carries out the change of the rewind

shaft positions. Working process fully automatic.

Programmable controller with register of machine movements. Including programmer and

display with information concerning roll length, operating speed, production indicator.

It is the most advanced numerical control cash register slitting equipment in China.

Specification:

Max width 900mm

Max Unwinding Diameter φ800MM

Reel paper core inner Diameter 76MM air shaft
