HSJ1100 NEW TYPE CASH REGISTER PAPER ROLL SLITTING REWINDING MACHINE

 this new type cash register papper roll slitting rewinding machine with model HJS1100 is mainly used to
 slit rewind the thermal paper rolls,cash register paper rolls,computer bills,medical record paper rolls,
pos printing paper rolls,atm paper rolls,NCR paper, woode free paper,films etc.



TEL: 0086-577-65123056 MOBILE/WHATAPP: 008613967712353 E-mail: cathylong7755@gmail.com skype: cathylong7755

Details

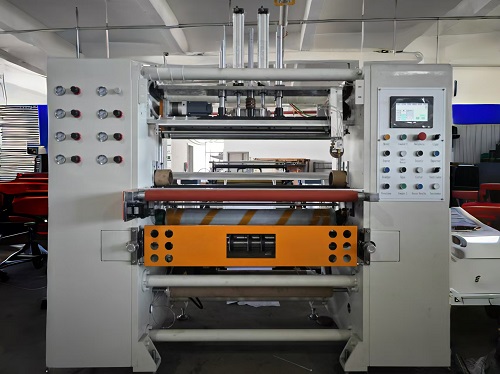

 NEW TYPE CASH REGISTER PAPER ROLL SLITTING REWINDING MACHINE HJS1100

THIS NEW TYPE CASH REGISTER PAPER ROLL SLITTING REWINDING MACHINE HAS BEEN IMPROVED ON THE BASIS OF OLD TYPE. THE APPEARANCE IS MORE ADVANCED THAN OLD TYPE

SURE THE FUNCTIONS ALSO MORE ADVANCED. AUTOMATIC CUTTING,AUTOMATIC GLUEING,

this new type cash register papper roll slitting rewinding machine with model HJS1100 is mainly used to slit rewind the thermal paper rolls,cash register paper rolls,computer bills,medical record

paper rolls,pos printing paper rolls,atm paper rolls,NCR paper, woode free paper,films etc.

USAGE: it is mainly suitable for slitting all kinds of FAX PAPER, CASH REGISTER, COMPUTER BILL, MEDICAL RECORD PAPER,POS PRINTING PAPER,ATM REEL PAPER, film and self
adhesive paper etc.

FUNCTION: it is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC).

Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller. It is the most advanced
numerical control cash register slitting equipment in China

Technical Parameters :
1.Material: Thermal paper, cash register, ATM roll etc
2.The maximum width of the jumbo reel: 700(900)mm
3.The width of the small slitted reel by the machine: 20-1100mm
4.Working speed: 200m/min
5.Slitting speed: 5-200m/min
6.The maximum unwinding diameter: 1200mm
7.The unwinding shaft: locked 3 inch air expanding shaft
8.Unwinding tension force 100N
9.The maximum rewinding diameter: 250mm
10.The main motor: 3.2 KW frequence inverter control
11.The fan motor: 1.5 kw single phase motor
12.The transimmission way: chain, gear and synchronization strap
13.Standard slitting width: 35mm 57 65 75 80 ,,,,1100£©
14.Machine material: steel board and cast iron
15.Working voltage: three phase four line, 380V, 50HZ
16.Total power: 5.2 kw
17.Weight: about 1200 kgs
18.Overall dimension (LxWxH) 2.5mx2.9mx1.95m

Description

Brand

Automatic paper insert system





Automatic tension force system





Automatic warning line printed





Automatic gluing





Automatic paper cutting





Length setting





Automatic paper push





PLC system

Siemens

Germany

Servo motor

Siemens

Germany

Touch Screen

Siemens

Germany

Digital module

Siemens

Germany

Inverter

Yaskawa

Japan

Relay

Schneider

France

Bearing

NSK

Japan























SPARE PARTS LIST

Description

Quantity

Instruction

1

Host

1

Wrench of dural purpose

1

Socket head wrench

1

Electric Testing pen

1

Clyburn spanner

1

Round nut wrench

1

Oil gun

1

Tension board

1

Screwdriver (slot type and cross type)

each one

Nylon gear

2

Rewinding Roll

6

Synchronous Belt M5-790 ,M5-950

each one
